Electronics has become very important, because the majority of devices that work with electricity have a circuit or chip, thanks to which they can carry out the task that they have been designed to perform. DIY Layout Creator is an ideal tool to design all kinds of circuits in a very intuitive manner, because it allows you to “draw them” on a very simple interface, that has all the tools necessary to be able to add any element to a circuit board in a matter of seconds. The program will allow us to add chips, switches, resistors, rectifiers, cables, diodes or transistors, among many other elements. Once we have finished our design, we'll be able to easily save it as an image file or print it without any problem.
How to use DIYLC diy-layout-creator. This feature is not available right now. Please try again later.
If you're really into electronics and you're looking for a program that will help you to design circuits in the most simple and intuitive way, download DIY Layout Creator right now, a lightweight, complete and totally free application.

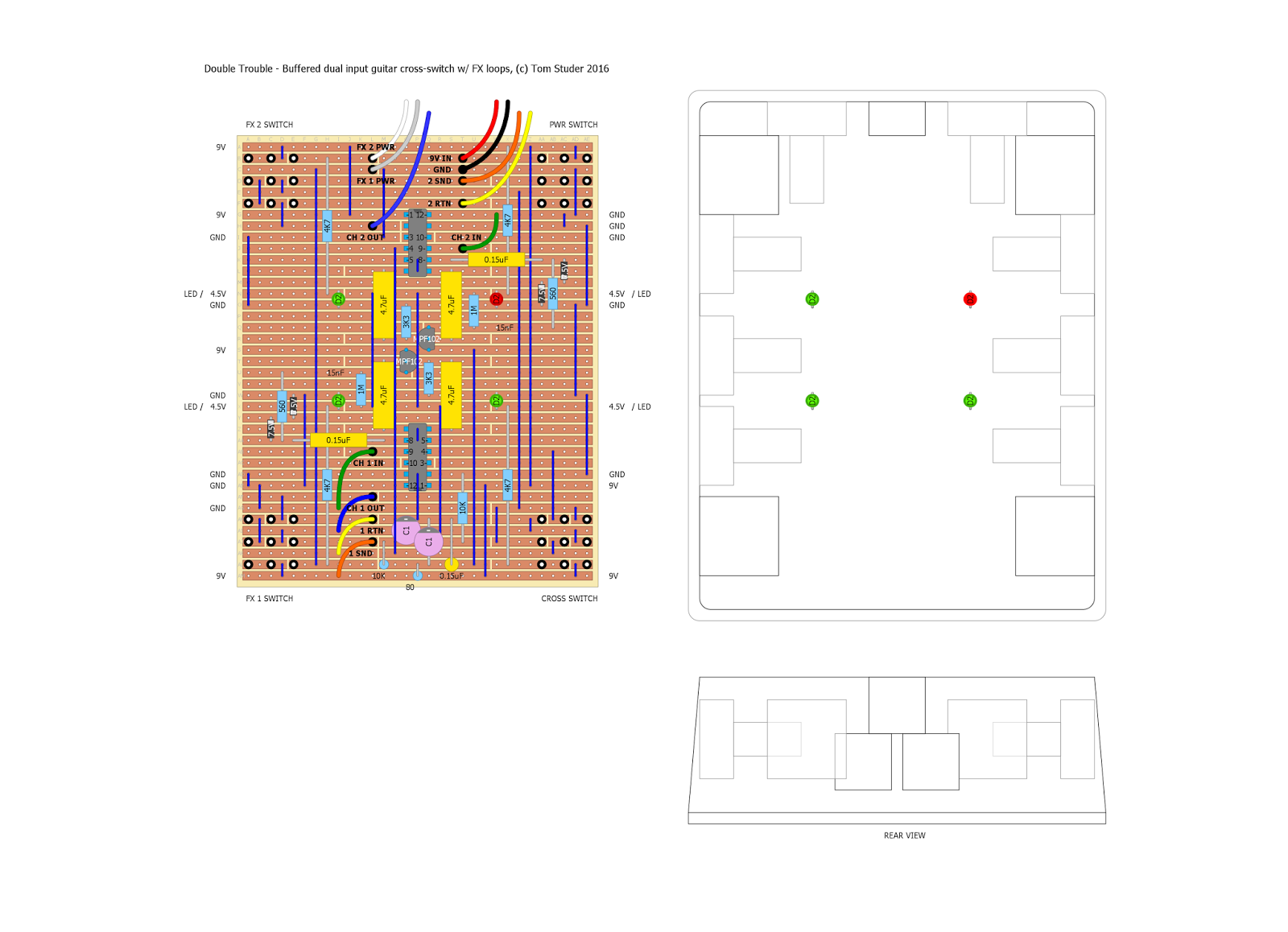

DIY Layout Creator DIY Layout Creator (DIYLC in short) is freeware drawing tool developed with help of a large online community of DIY electronics enthusiasts. It incorporates many ideas that came from people using older versions of the application. The goal is to provide a simple interface and enough power to let the user draw schematics, board/chassis layouts and guitar wiring diagrams quickly and without a steep learning curve. Also, it is build around the flexible open source framework that may be used to draw pretty much anything. Below is a sample board layout drawn in DIYLC3. DIY Layout Creator 3.x The latest and greatest multi-platform Java version. Works on Windows, Linux, MacOSanything that can run Java JRE.
DIY Layout Creator (DIYLC in short) is a freeware drawing tool developed with help of the large online community of DIY electronics enthusiasts. Free Download DIY Layout Creator 1.23 - Useful tool that helps you easily create board layouts for PCB, Perfboard or Stripboard, comprising numerous.
Mostly backwards compatible with the previous two versions and offers better performance, improved stability and higher flexibility due to the open source API. It’s got it’s own site now where you can grab the latest version report a bug or suggest new feature. The address is. To get the latest build, visit To file a bug report or issue request visit. DIY Layout Creator 1.18 The very first version of DIYLC, written in Delphi and runs only on Windows. At this time I do not support or update this version, it’s been almost a decade since I last played with it. You can still find a bunch of layouts online drawn with this version of the software.
It’s pretty easy to use and can draw smaller PCBs, Perfboards or Stripboards quickly. It has simple yet very effective interface which makes job much easier. Placing a component on board takes only 2-3 mouse clicks. You need to click on source and destination hole and program will place component between them.
Placing polarized components is the same, but then you need to take care about hole order because program takes source hole for positive and destination hole for negative side. It’s similar with IC: pin 1 goes in source hole and last pin goes to destination hole.
When working with PCB layouts you can set width of each trace and solder pad! Also, there’s “Print PnP” which gives printout ready for transfer on blank board (laser printer required). However, it’s not very flexible and it’s written poorly, I keep it here because it’s kind of retro cool, but I don’t use it anymore these days.
